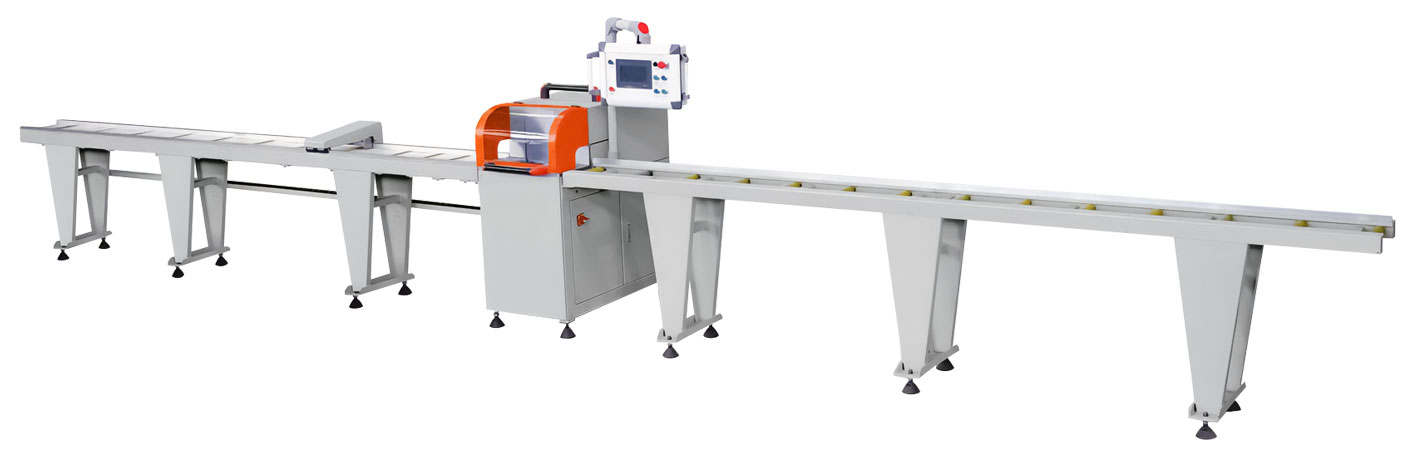

CNC Glazing Bead Saw Machine AW-GBS-CNC-350
Machine Features
- This machine is designed for 90° cutting of glazing beads for aluminum windows and doors, ensuring high cutting efficiency and precision.
- The machine utilizes a horizontal structure, with pneumatic transmission for workpiece feeding and compression.
- High-quality linear guide rails and an Italian direct-drive motor ensure excellent cutting accuracy.
- A mist-spraying cooling system is used to cool the saw blade, extending its lifespan and improving the surface finish of the material.
- Rubber-coated rollers protect the glazing bead from scratches during processing.
- The machine is equipped with an imported servo motor, high-quality gears, rack, and speed reducer to ensure precise positioning.
- It features wireless data reception, with a high-precision manual measuring tool used to measure the window’s inner dimensions. The data is automatically transmitted to the machine, allowing for accurate positioning and cutting, which enhances the assembly accuracy of the glazing bead.
Main Technical Parameters
| Item | Specification |
|---|---|
| Sawing Motor Power | 1.5 kW |
| Motor Speed | 2800 r/min |
| Servo Motor Power | 400 W |
| Saw Blade Size | Ø350 × Ø30 × 3.4 × 108Z |
| CNC fixed length range | 50 ～ 3500 mm |
| Cutting Section Size (W × H) | 48 × 75 mm |
| Sizing Accuracy | 0.1 mm |
| Length of support frame | 4000 mm |
| Overall Dimensions | 8500 × 1200 × 1500 mm |
| Input Voltage | 380V 50Hz |
