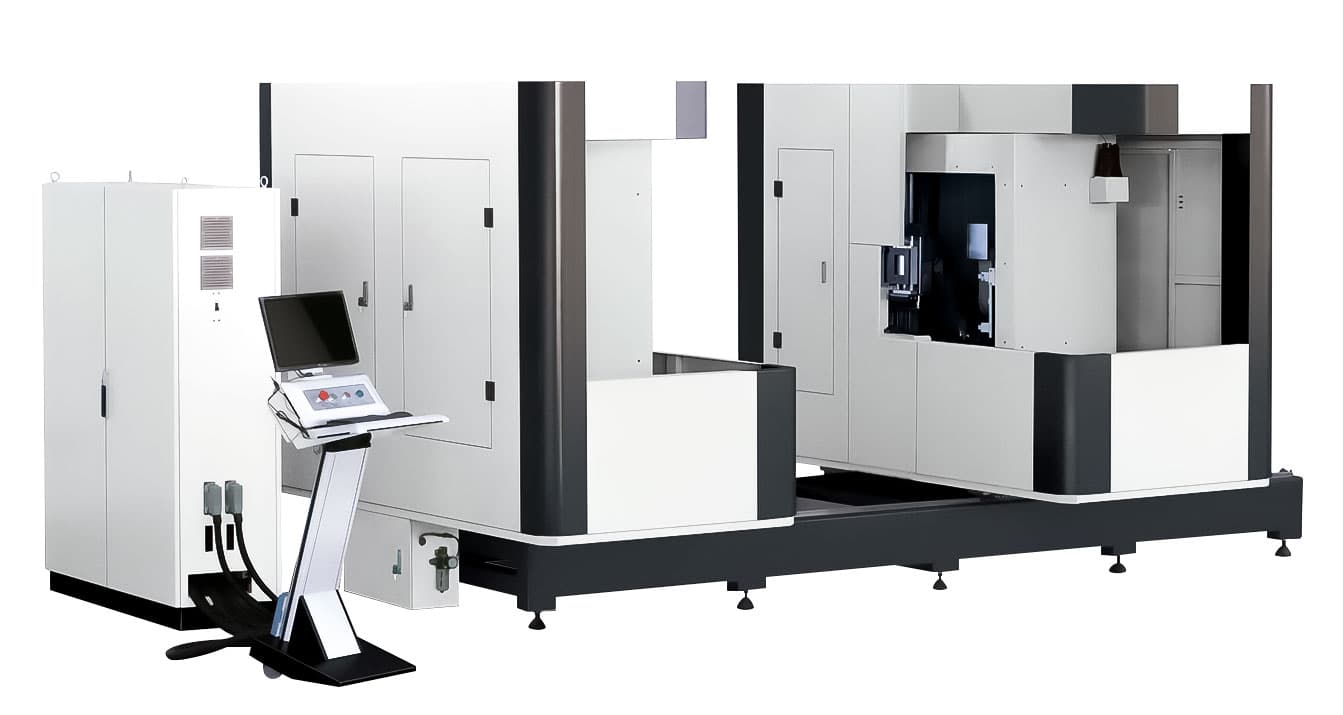

CNC Double Head End Milling Machine AW-MHE-CNC-3000

end milling machine

Machine Features

  • The equipment is designed for the rapid milling of the end face of mullion profiles for aluminum doors and windows. It can efficiently perform multiple functions, including injection hole drilling, pin hole milling, and angle cutting for mullions, window frames, and sashes.
  • Can be integrated with robots to enable automatic loading and unloading.
  • The left machine head is fixed, while the right machine head can automatically perform precise CNC positioning.
  • Both the left and right heads are equipped with three sets of CNC tools (two disk milling cutters and one rod milling cutter), allowing for flexible CNC combinations and high processing efficiency.
  • The tool feed utilizes a linear guide movement system, ensuring stable working performance.
  • The feed system is servo-controlled, providing smooth and consistent cutting feed with excellent cutting accuracy and surface quality.


Main Technical Parameters

ItemSpecification
Maximum Length of Muntin3000 mm
Milling Cutter Diameter300 mm
Spring Milling ChuckER20-8
Milling Motor Power3kW×4 sets, 2.2kW×2 sets
Machine Power30kW
Power Supply380V / 50HZ
Air Source Pressure0.5 - 0.8 MPa
Dimensions5000 mm×2000×2150 mm
Weight3500 kg
